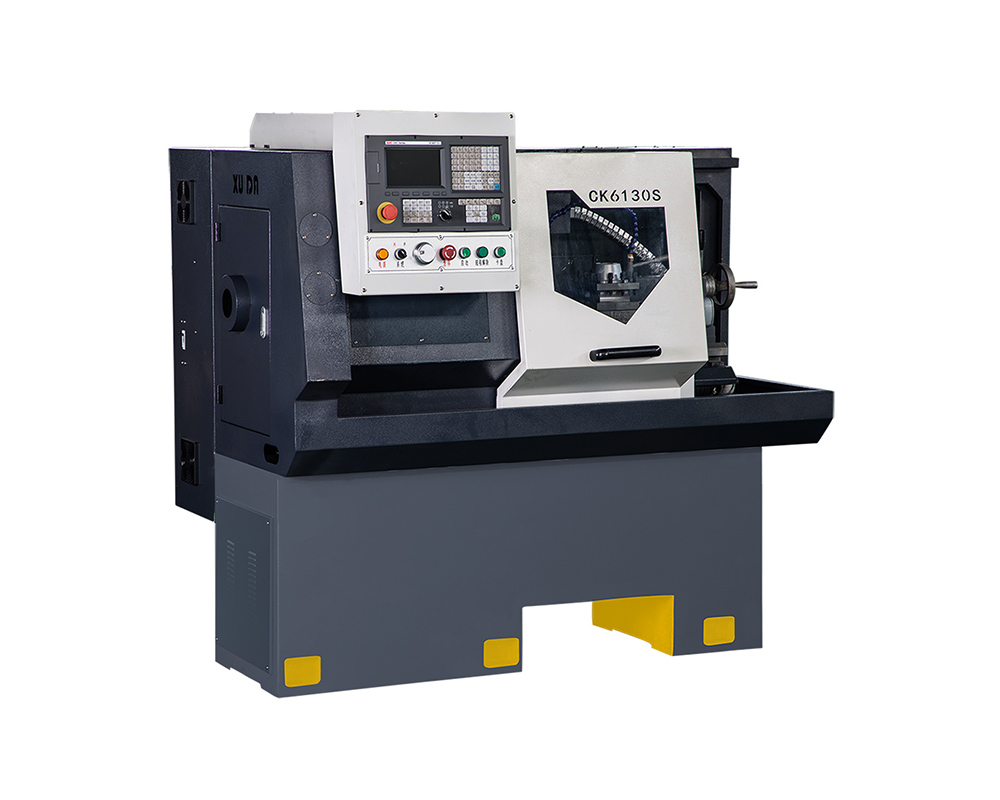

高性能線軌車床技術參數Techincal data | 單位Unit | CK0640 | CK6130S | ||
加工范圍 working area |
最大回轉直徑 床身/拖板 |
Max.swing diameter Over bed/over slide |
mm | 320/105 | 320/155 |
320/115 排刀 | |||||
最大加工長度 | Max.turning length | mm | 230 | 350 | |
最大車削直徑 | Max.turning dia | kw | 280 | 300 | |
最大過棒料直徑 | Max.bar through-hole | rpm | 30(38) | 38 | |
主軸 Spindle |
主軸端部形式 | Spindle nose size | type | 自制Homemade | 自制Homemade |
主軸孔直徑 | Spindle through hole | mm | 42(49) | 49 | |
主軸電機功率 | Spindle drive motor | kw | 2.2/3.7 | 3.7 | |
主軸最高轉速 | Max.Spindle speed | rpm | 2800 | 2800 | |
主軸夾持方式 | Work piece clamping method | N/A |
筒夾 Collet chuck |
筒夾 Collet chuck |
|
Work piece clamping method | N/A |
5 寸液壓卡盤(選) Hydraulic chuck |
6 寸液壓卡盤(選) Hydraulic chuck |
||
行程 Axis stroke |
X 軸移動量 | X-axis travel | mm | 170 | 170 |
280(排刀) | |||||
Z 軸移動量 | Z-axis travel | mm | 200 | 420 | |
X 軸快速移動 | X-axis rapid traverse | m/min | 10 | 10 | |
Z 軸快速移動 | Z-axis rapid traverse | m/min | 10 | 10 | |
刀架 Turret |
標準刀座形式 | Toolholder type | N/A |
排刀 blade row |
四工位電動刀架 |
排刀 | |||||
刀具尺寸 車削/鏜孔 |
Tool size Turning/Boring |
mm | 16x16/φ20 | 20X20/φ25 | |
精度 Accuracy |
重復定位精度 | X/Z axis repeating postioning accuracy | mm | 0.0075/0.01 | 0.0075/0.01 |
其他 Others |
機床尺寸 (長x寬x高) |
Overall size(LxWxH) | mm | 1570x1025x1400 | 1700x1300x1550 |
機床重量 | Net weight | KG | 950 | 1200 |
