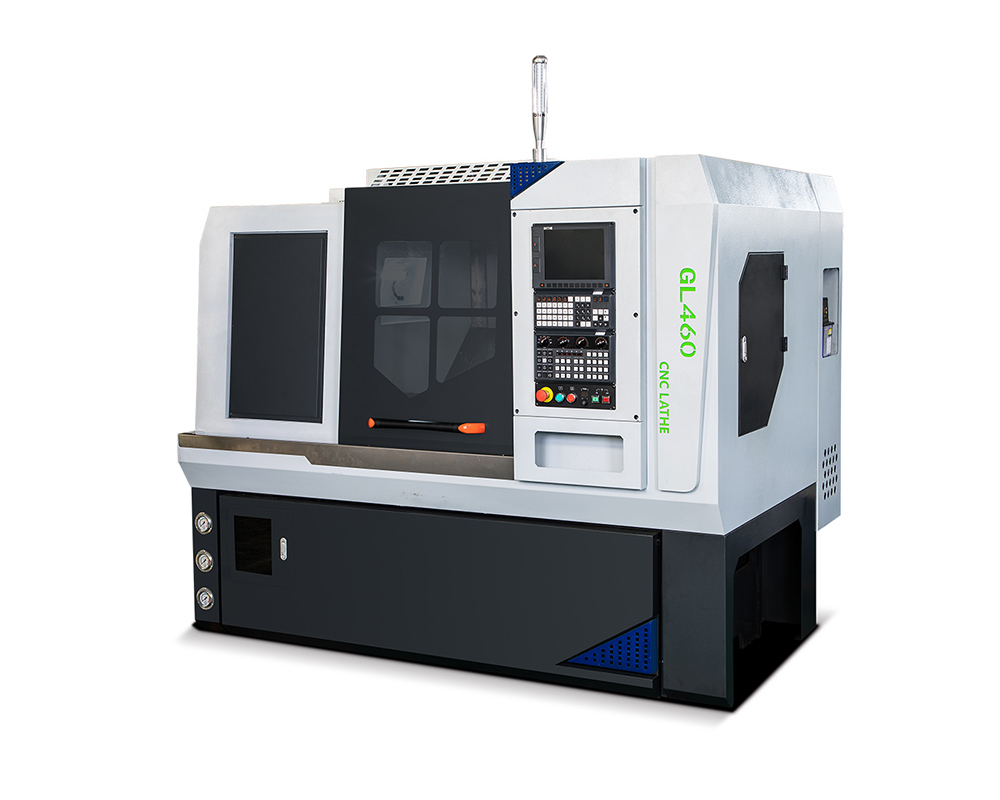

精密線軌斜車床技術參數Techincal data | 單位Unit | GL460 | GL550 | ||
加工范圍 working area |
最大回轉直徑 床身/ 拖板 |
Max.swing diameter Over bed/over slide |
mm | 480/220 | 550/300 |
最大加工長度 | Max.turning length | mm | 420 | 500 | |
最大車削直徑 | Max.turning dia | mm | 460 | 550 | |
最大過棒料直徑 | Max.bar through-hole | mm | 45/52 | 52 | |
主軸 Spindle |
主軸端部形式 | Spindle nose size | type | A2-5/A2-6 | A2-6 |
主軸孔直徑 | Spindle through hole | mm | 56/62 | 62 | |
主軸電機功率 | Spindle drive motor | kw | 7.5/11 | 7.5/11 | |
主軸最高轉速 | Max.Spindle speed | rpm | 5000 | 4200 | |
主軸夾持方式 | Work piece clamping method | N/A |
8/10 液壓寸卡盤 Hydraulic chuck |
8/10 液壓寸卡盤 Hydraulic chuck |
|
床身結構 Bed structure |
床身結構 | Bed structure | type |
45°整體 Integral bed |
30°整體 Integral bed |
行程 Axis stroke |
X 軸移動量 | X-axis travel | mm | 250 | 200 |
Z 軸移動量 | Z-axis travel | mm | 480 | 530 | |
X 軸快速移動 | X-axis rapid traverse | m/min | 24 | 24 | |
Z 軸快速移動 | Z-axis rapid traverse | m/min | 24 | 24 | |
刀架 Turret |
標準刀座形式 | Toolholder type | N/A |
80 伺服刀塔 80 turret |
100 伺服刀塔 100 turret |
刀具尺寸 車削/鏜孔 |
Tool size Turning/Boring |
mm | 25x25/φ32 | 25X25/φ40 | |
尾座 Tailstock |
尾座套筒行程 | Tailstock sleeve strock | mm | 100 | 100 |
尾座套筒直徑 | Tailstock sleeve diameter | mm | φ62 | φ90 | |
尾座套筒錐孔 | Tailstock sleeve boring-hole | N/A | MT4 | MT5 | |
精度 Accuracy |
重復定位精度 | X/Z axis repeating postioning accuracy | mm | ±0.003/300 | ±0.003/300 |
其他 Others |
機床尺寸 (長x寬x高) |
Overall size(LxWxH) | mm | 2500x1600x1950 | 3100x1700x1950 |
機床重量 | Net weight | KG | 3500 | 4200 | |
標準附件:工具箱,說明書,使用手冊,潤滑系統,電控系統,冷卻系統,照明系統,液壓筒夾(卡盤),防護罩 Standard: Toolbox, instruction manual, instruction manual, lubrication system, electric control system, cooling system, lighting system, hydraulic collet (chuck), protective cover |
|||||
選配附件:動力頭,自動門,桁架上下料,6 關節機器人,自動送料機,排屑機,視覺系統,對刀儀,防碰撞儀,高壓冷卻系統,自動斷屑程序,8/10 工位伺服刀塔,油冷機 Optional: Power head, automatic door, truss loading and unloading, 6-joint robot, automatic feeder, chip conveyor, vision system, tool setting instrument, anti |
