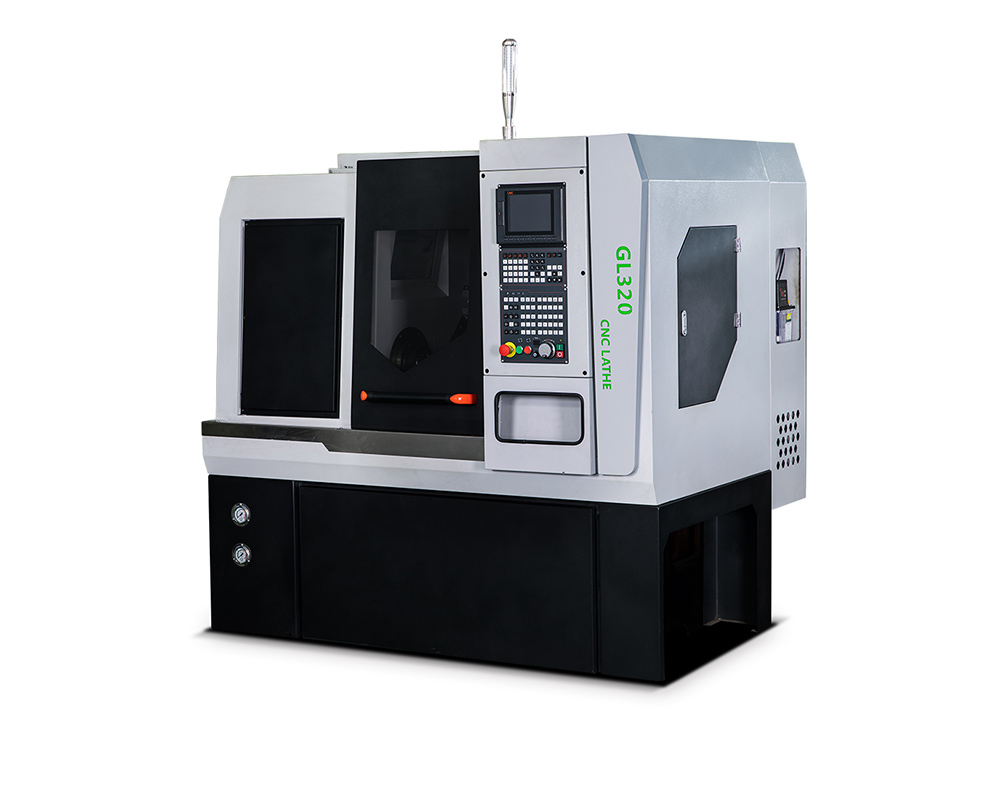

精密線軌斜車床技術參數Techincal data | 單位Unit | GL320 | GL360 | ||
加工范圍 working area |
最大回轉直徑 床身/ 拖板 |
Max.swing diameter Over bed/over slide |
mm | 360/120 | 360/120 |
最大加工長度 | Max.turning length | mm | 150 | 180 | |
最大車削直徑 | Max.turning dia | mm | 320 | 360 | |
最大過棒料直徑 | Max.bar through-hole | mm | 32 | 45 | |
主軸 Spindle |
主軸端部形式 | Spindle nose size | type | A2-4 | A2-5 |
主軸孔直徑 | Spindle through hole | mm | 46 | 56 | |
主軸電機功率 | Spindle drive motor | kw | 3.7/5.5 | 5.5/7.5 | |
主軸最高轉速 | Max.Spindle speed | rpm | 5000 | 5000 | |
主軸夾持方式 | Work piece clamping method | N/A |
筒夾 Collet chuck |
筒夾 Collet chuck |
|
Work piece clamping method | N/A |
5/6 液壓寸卡盤 Hydraulic chuck |
6/8 液壓寸卡盤 Hydraulic chuck |
||
床身結構 Bed structure |
床身結構 | Bed structure | type |
45°整體 Integral bed |
30°整體 Integral bed |
行程 Axis stroke |
X 軸移動量 | X-axis travel | mm | 400 | 400 |
Z 軸移動量 | Z-axis travel | mm | 300 | 350 | |
X 軸快速移動 | X-axis rapid traverse | m/min | 24 | 24 | |
Z 軸快速移動 | Z-axis rapid traverse | m/min | 24 | 24 | |
刀架 Turret |
標準刀座形式 | Toolholder type | N/A |
排刀 Blade row |
排刀 Blade row |
63 伺服刀塔 63 turret |
63 伺服刀塔 63 turret |
||||
刀具尺寸 車削/鏜孔 |
Tool size Turning/Boring |
mm | 20x20/φ25 | 20x20/φ25 | |
精度 Accuracy |
重復定位精度 | X/Z axis repeating postioning accuracy | mm | ±0.003/300 | ±0.003/300 |
其他 Others |
機床尺寸 (長x寬x高) |
Overall size(LxWxH) | mm | 1900x1650x1850 | 2200x1650x1900 |
機床重量 | Net weight | KG | 1800 | 2300 | |
標準附件:工具箱,說明書,使用手冊,潤滑系統,電控系統,冷卻系統,照明系統,液壓筒夾(卡盤),防護罩 Toolbox, instruction manual, instruction manual, lubrication system, electric control system, cooling system, lighting system, hydraulic collet (chuck), protective cover |
|||||
選配附件:動力頭,自動門,桁架上下料,6 關節機器人,自動送料機,排屑機,視覺系統,對刀儀,防碰撞儀,高壓冷卻系統,自動斷屑程序,8(10)工位63 刀塔 Optional: Power head, automatic door, truss loading and unloading, 6-joint robot, automatic feeder, chip conveyor, vision system, tool setting instrument, anti-collision instrument, high pressure cooling system, automatic chip breaking program, 8 (10) station 63 turret |
